Application:
|
Radiator / Fuel / Water / Oil
|
|
Reinforcement:
|
Polyester
|
|
Temperature:
|
-60°C to +180°C
|
|
Standard:
|
SAEJ30R6
|

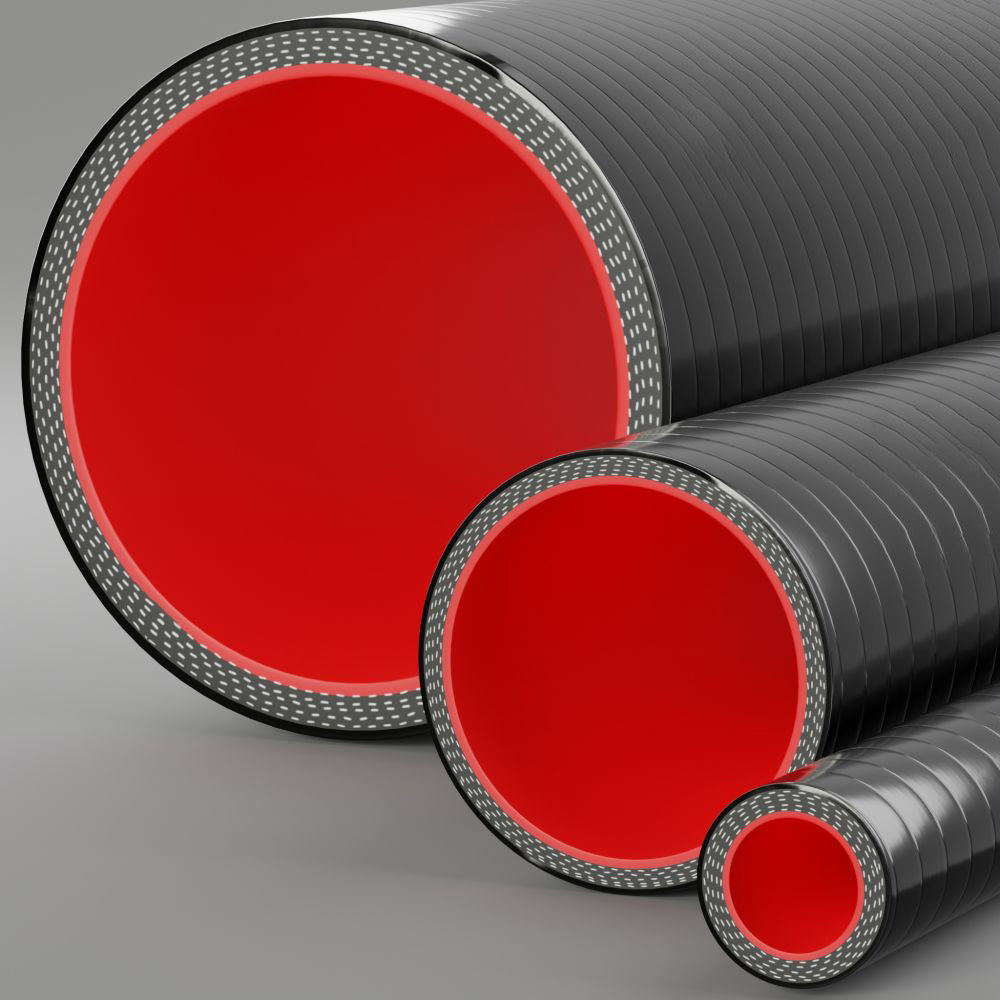

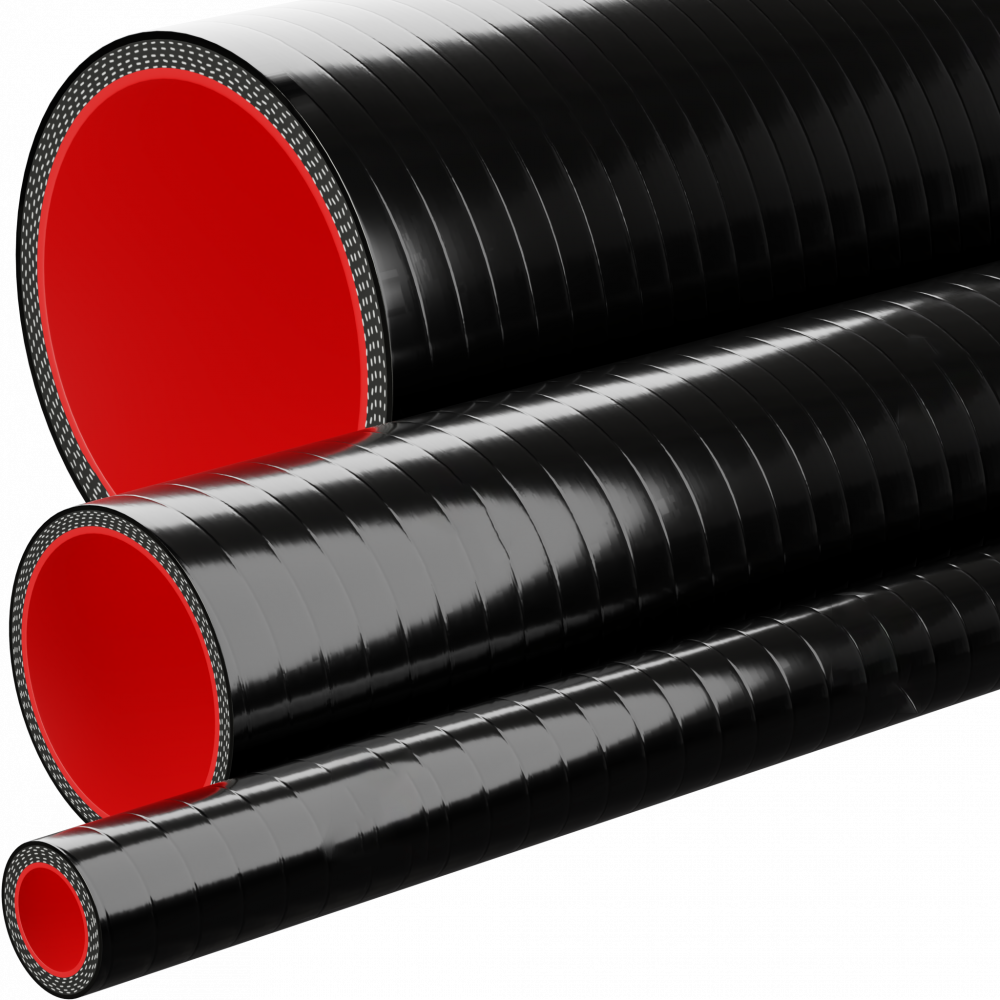

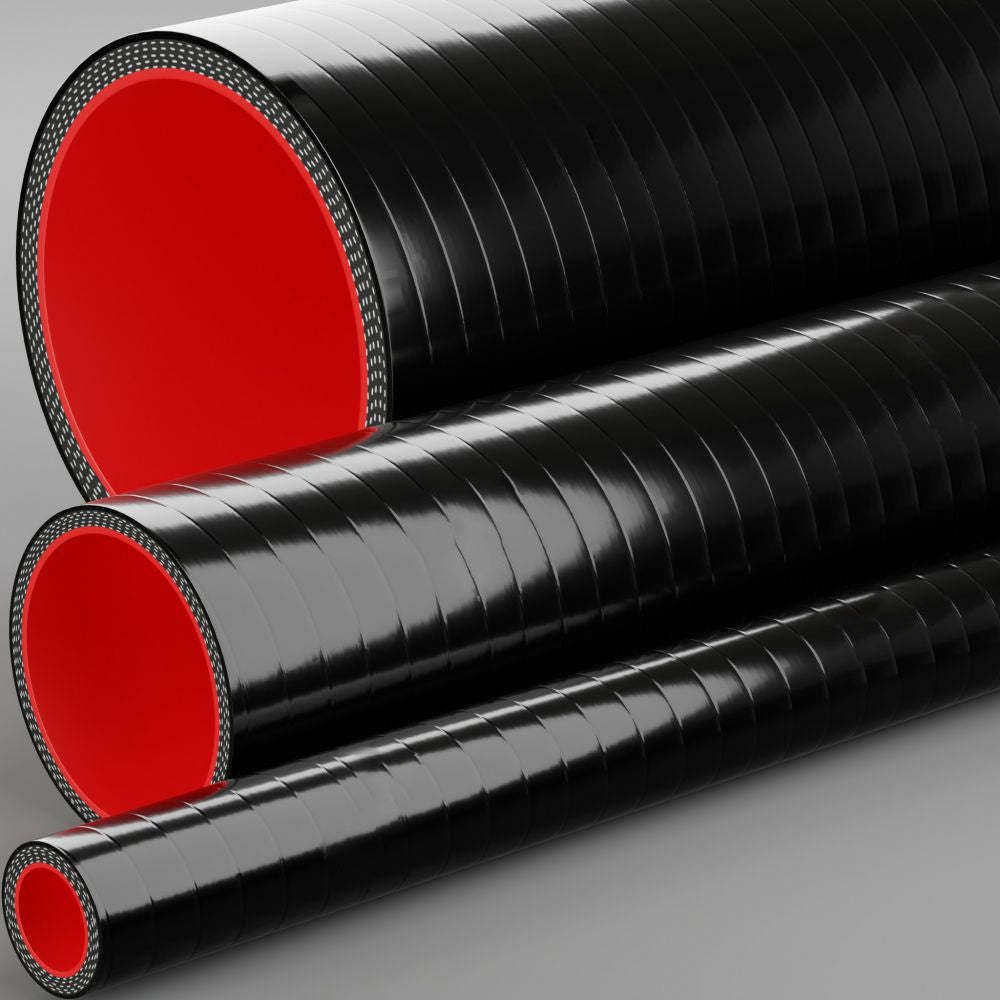

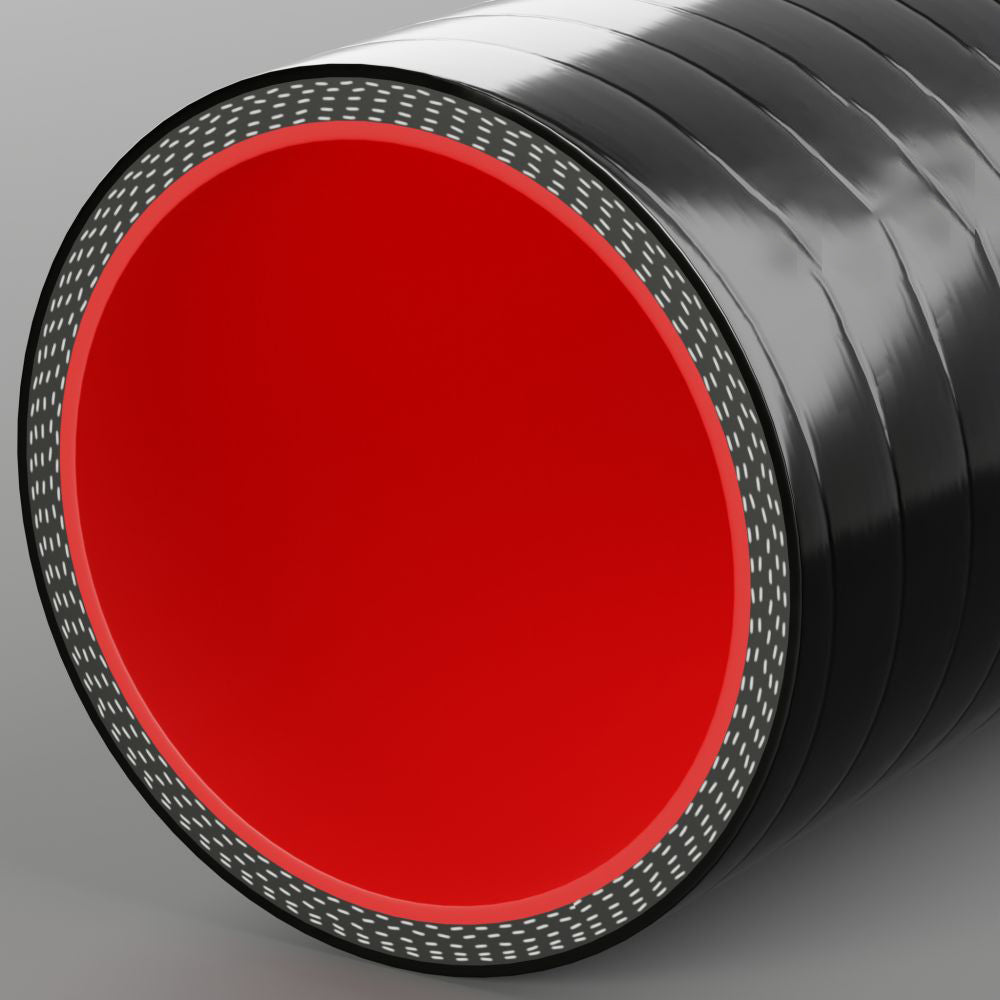

【product description】Fuel & oil silicone hoses are designed to connect metal pipe work and components in systems that contain hydrocarbon fluids such as petrol, diesel, oil and solvents. The fluoro Silicone liner allows short term contact with these fluids and vapours, but is not suitable for permanent transfer (fuel or oil lines), or immersion in fuel or oil.
Apart from the fluoro liner these hoses are constructed to the same standards as our water & air silicone hoses. They have the same ability to maintain material flexibility over the lifespan of its use, where in some conditions, rubber hoses are at risk of splitting, hardening, or dry rot.
Can you use silicone hoses for fuel hoses? Silicone is a porous material and therefore not suitable for oil or fuel. Fluoro silicone liners, are specially formulated to prevent oil from penetrating the wall but we would not recommend these for Fuel lines, or heavy use of Fuel Filling. Occasional fuel usage and vapour is ok however we recommend rubber for constant contact with fuel.
|
BRAND
|
Auto Silicone Hoses
|
|
SELECT ANGLE
|
Straight
|
|
HAZARDOUS GOODS
|
No
|
|
ROHS COMPLIANT
|
Yes
|
|
SELECT LENGTH
|
1 Metre
|
|
MAX LENGTH
|
1 Metre
|
|
WALL THICKNESS
|
4.5mm / 5.5mm
|
|
PART NUMBER
|
FSLB-ASH
|
|
TEMPERATURE RATING
|
-60°C to +180°C
|
|
APPLICATION
|
Engine Coolant Systems, Radiator Hose
|
|
SAFETY FACTOR
|
3 x Working Pressure
|
|
HOSE GRADE
|
SAEJ30R6
|
|
HOSE CONSTRUCTION
|
Polyester Reinforcement / VMQ Silicone Rubber
|
|
SELECT MATERIAL
|
Silicone Fluoro Lined
|
|
MANUFACTURER
|
Auto Silicone Hoses
|
|
RETURN PERIOD
|
30 days
|
