Application:
|
Fuel / Petrol / Vacuum Lines
|
|
Construction:
|
Nut & Bolt
|
|
Temperature:
|
-60°C to +180°C
|
|
Band Width:
|
9mm
|

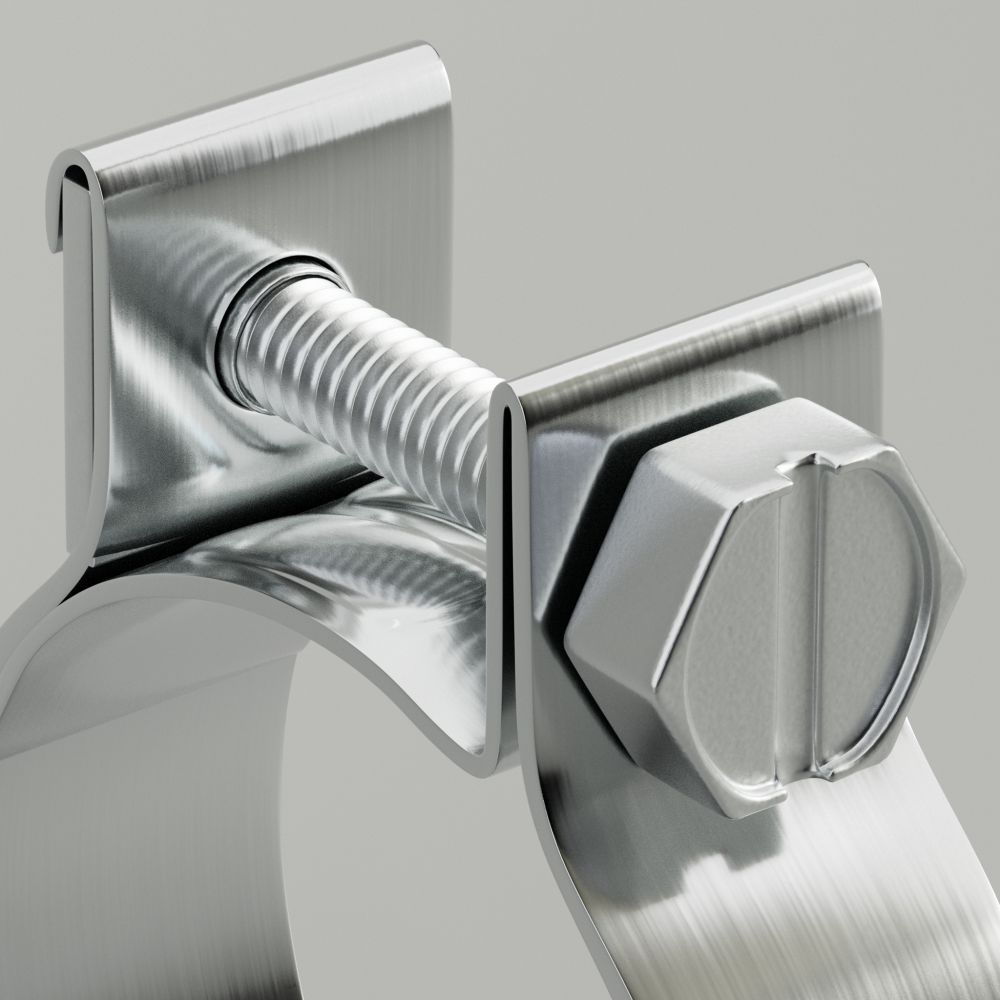

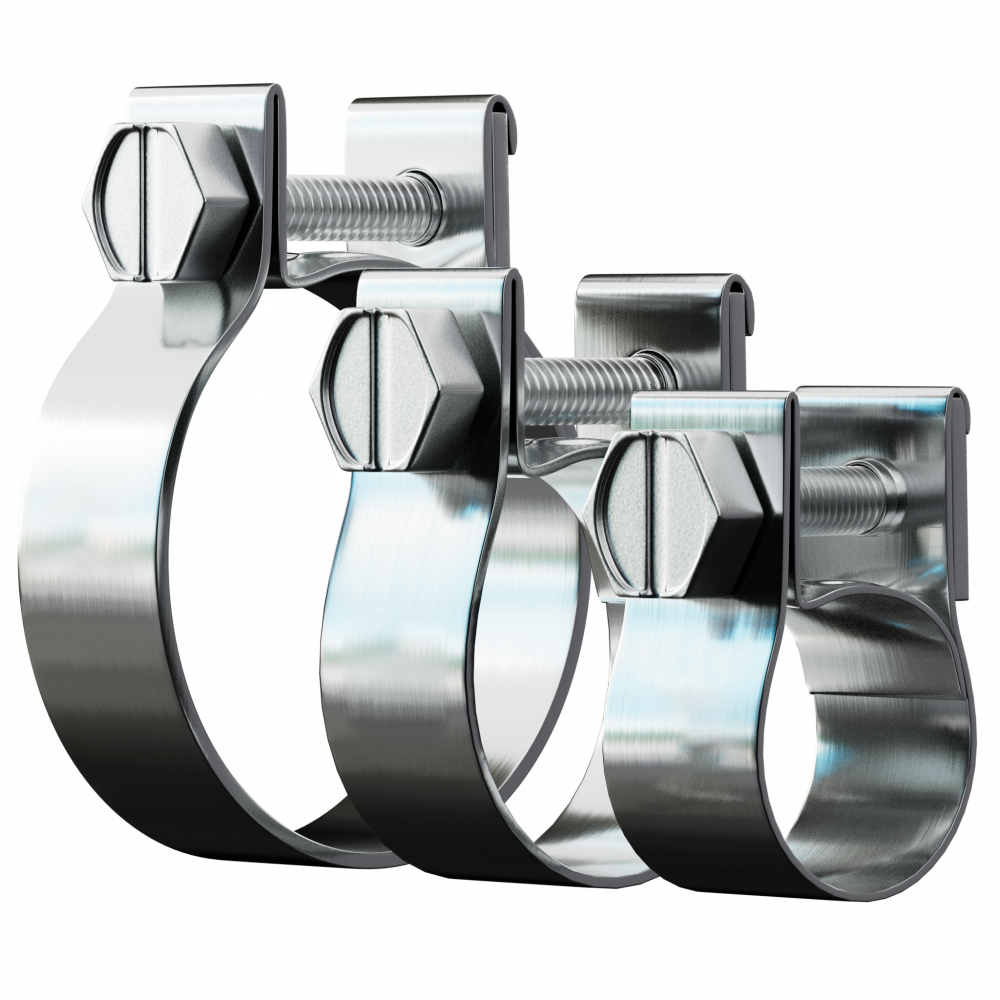

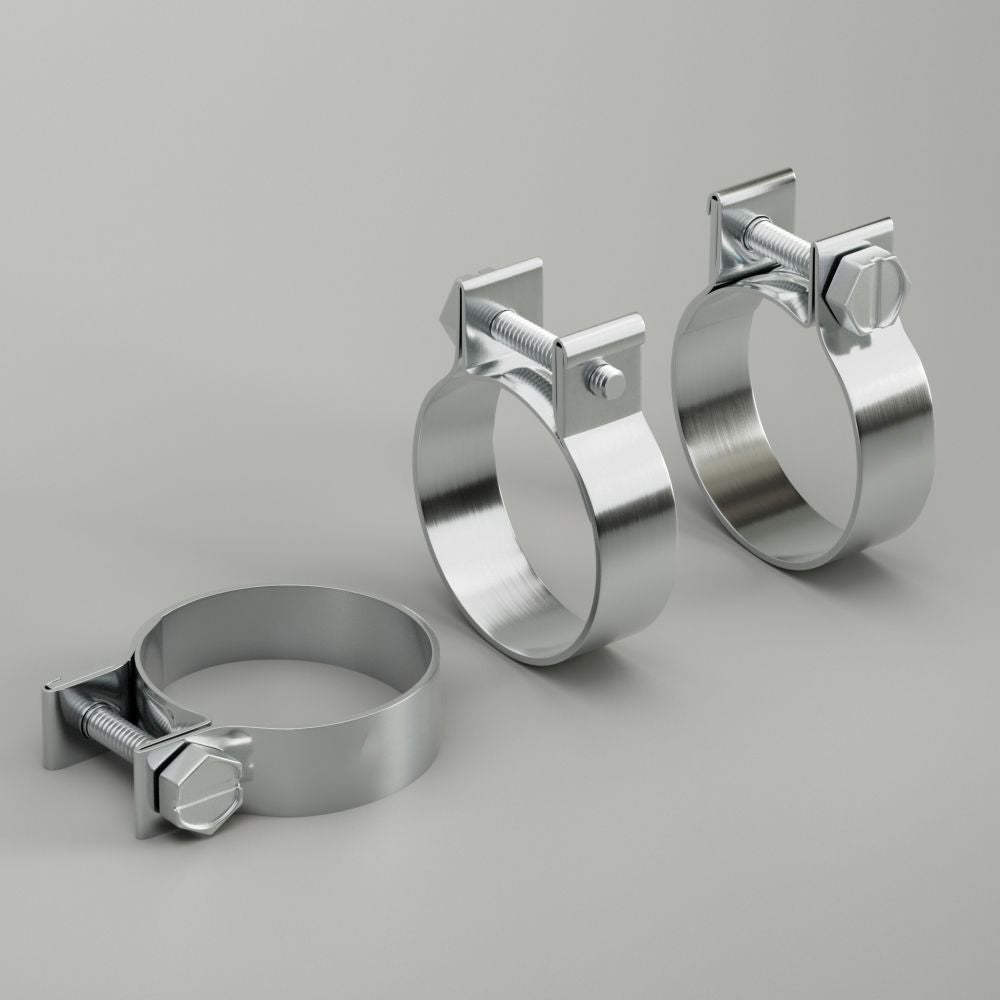

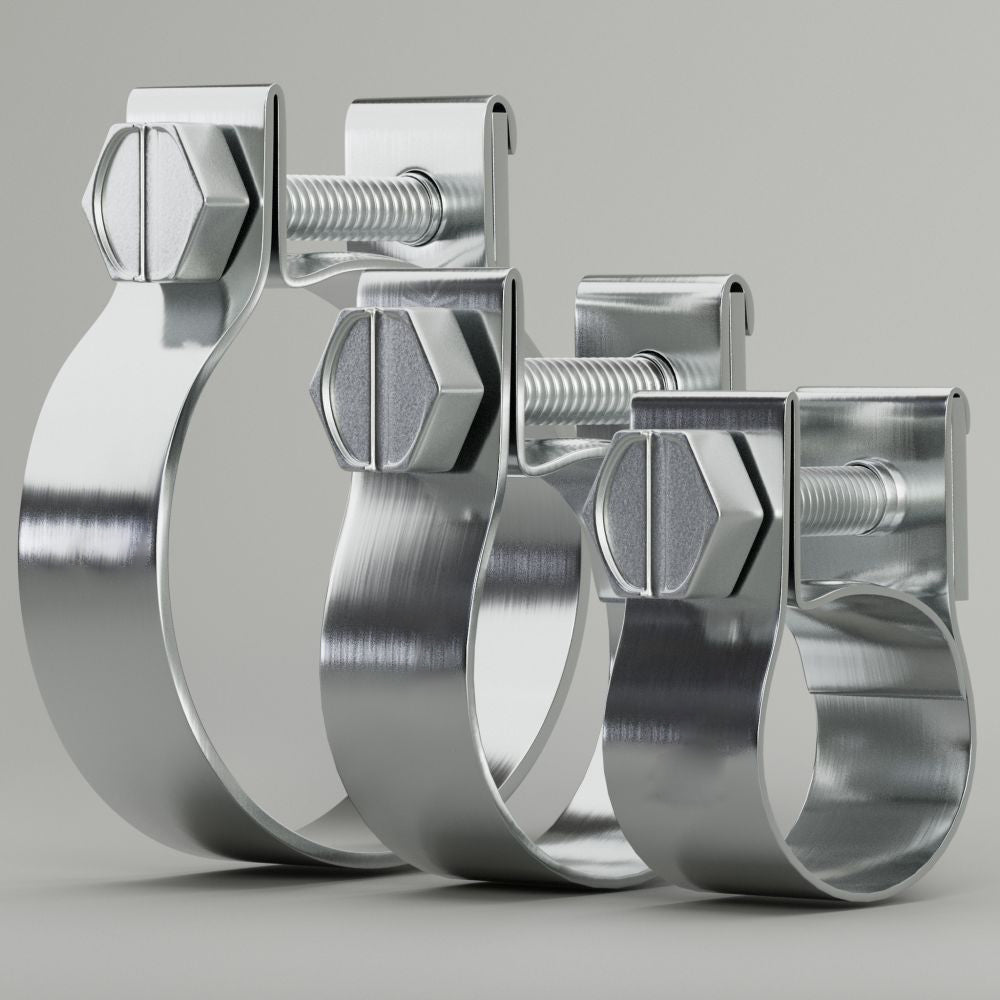

【product description】The Mini Clip, also known as the Nut & Bolt, Fuel line or Petrol Pipe Clip is tailor made for many small diameter constructions where a wide adjustment span is not necessary. Designed for smaller bore hoses with relatively low pressures to prevent against loss of liquid & sealing hoses. Available in mild steel with zinc plating W1 or stainless steel W4, these clamps have a smooth inner with a small adjustment range which forms a complete clamping circle.
ASH mini clips are ideal where little clamping force is required. Adjusted by a single bolt, available in mild steel zinc plated and marine grade 304 stainless steel. For automotive, agriculture, aviation, material handling, marine, plant & construction. Air, fuel, water, coolant, breather and PVC
7mm hexagonal head screw and is ideal for applications such for securing petrol pipes, heater and other small bore hoses.
Our mini clamps can be used with all ASH branded Silicone Hose, Rubber Pipes, PVC Tubes & to secure Aluminium & Stainless Steel pipework.
|
BRAND
|
Auto Silicone Hoses
|
|
SELECT COLOUR
|
Silver
|
|
HAZARDOUS GOODS
|
No
|
|
ROHS COMPLIANT
|
Yes
|
|
HOSE CLIP FIXING TYPE
|
Slotted 7mm Hex
|
|
HOSE CLIP TYPE
|
Mini Clip
|
|
PART NUMBER
|
MHC-ASH
|
|
TEMPERATURE RATING
|
-60°C to +180°C
|
|
APPLICATION
|
Petrol Pipes, Heater and other Small Bore Hoses
|
|
SAFETY FACTOR
|
3 x Working Pressure
|
|
HOSE GRADE
|
W1 Zinc Plated - W4 Stainless Steel
|
|
HOSE CONSTRUCTION
|
Nut & Bolt
|
|
SELECT MATERIAL
|
W4 Stainless Steel
|
|
MANUFACTURER
|
Auto Silicone Hoses
|
* USE THE OUTSIDE DIAMETER (OD) MEASUREMENT OF YOUR HOSES WHEN BUYING HOSE CLIPS & CLAMPS.
|
SIZE
|
FIX TYPE
|
BAND WIDTH
|
BAND THICKNESS
|
|
7mm to 9mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
8mm to 10mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
9mm to 11mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
10mm to 12mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
11mm to 13mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
12mm to 14mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
13mm to 15mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
14mm to 16mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
15mm to 17mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
16mm to 18mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
|
18mm to 20mm
|
Slotted 7mm Hex
|
9mm
|
0.6mm
|
